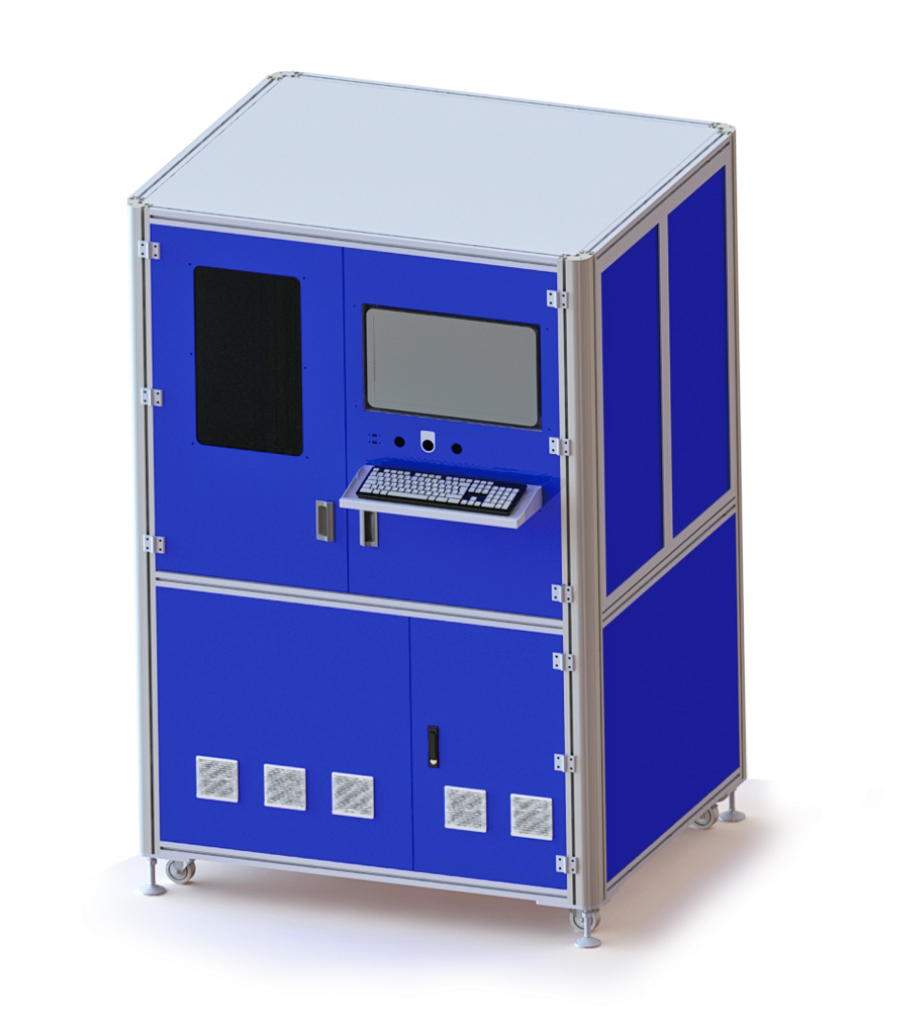

Tray Laser Marking Machine
Applied material / field
-

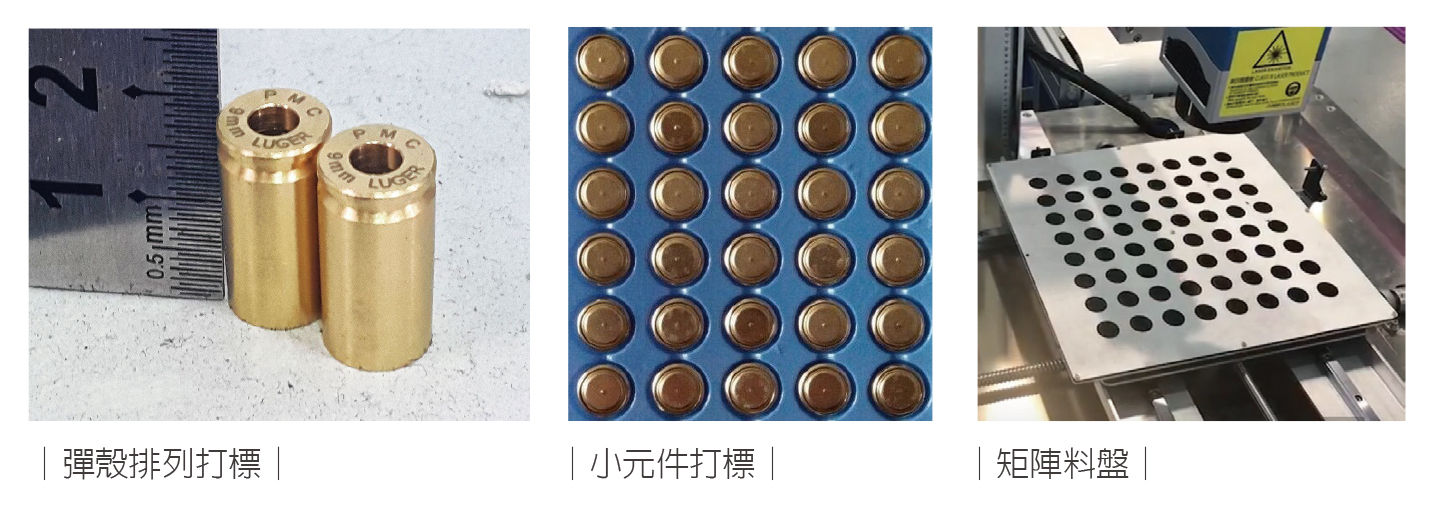

● Large and small size parts.
● Semi-finished products have been placed on specific pallets.
Features
-
● Hundreds or more parts can be placed on the tray at a time.
● Reduce manual loading and unloading time and improve production efficiency.
● It can easily realize the division marking function of the large material tray.

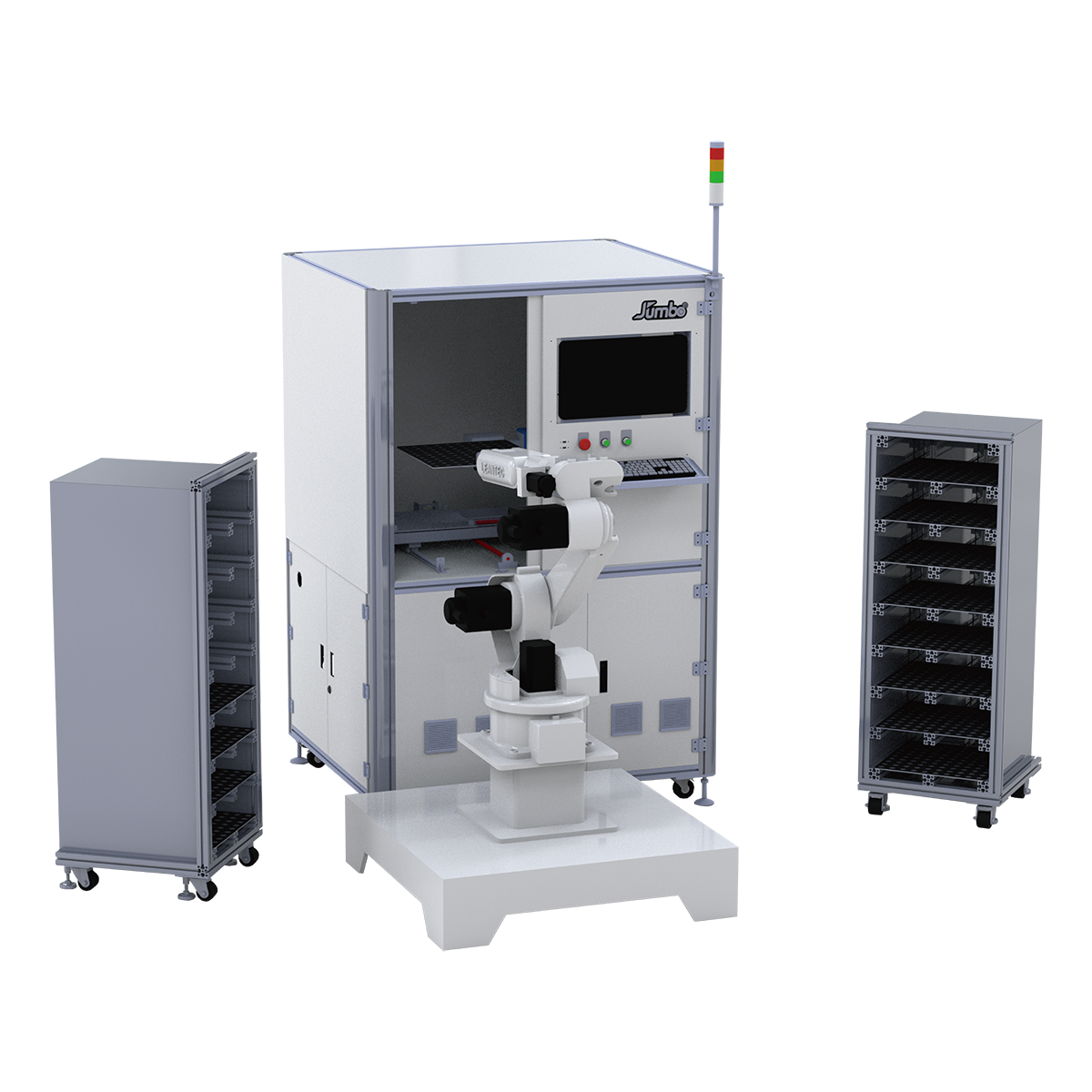

● It can be used with robotic arm for picking and placing

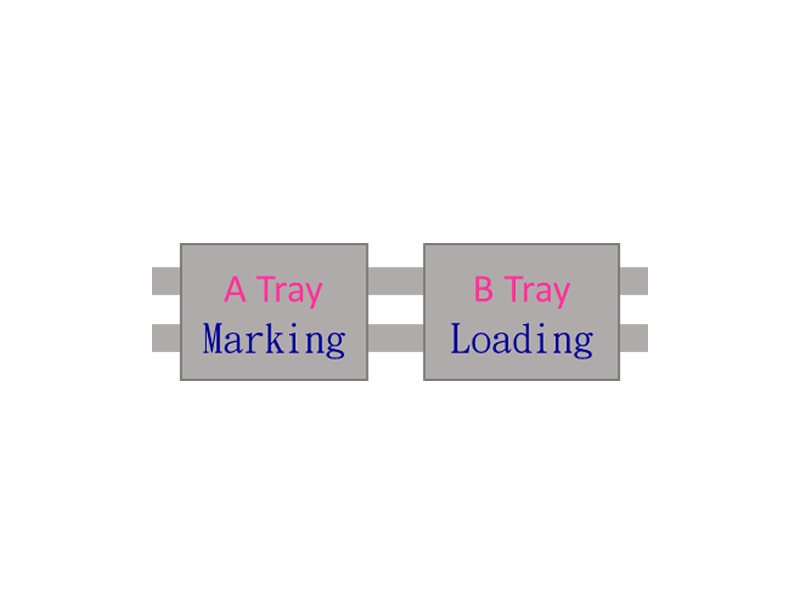

● It can be used for loading and unloading with two stations AB.
-
Product number
-
JBL-LMF series
-
-
Application Introduction
-
Can be matched with different light sources for product categories, such as CO2, optical fiber, UV, etc.
-
-
Features
-

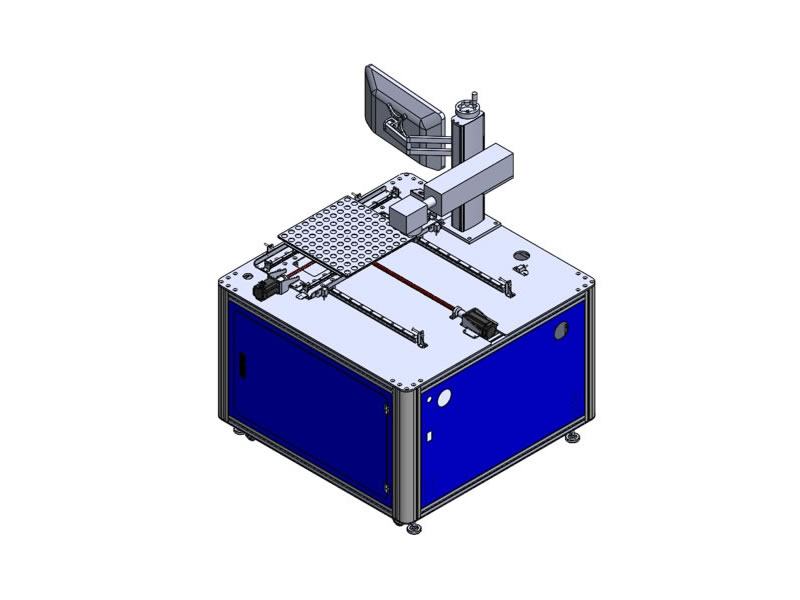

Tray marking can provide fast and accurate, suitable for large and small components, and the two-dimensional platform can realize automatic number skipping and batch production, reducing the time of personnel loading and unloading
-
-
Equipment Specifications
-
Laser source wattage :20/30/50
Marking range :110*110mm 175*175mm 300*300mm
Engraving speed :5000mm/s
Minimum line width :0.05mm
power supply :110V/220V 60HZ
cooling method :Air-cooled
Power consumption : ≦0.8KW
Equipment size :800*650*1300mm
-
-
Application industry
-
Automobile and motorcycle accessories, IC electronic components, PCB circuit boards, life hardware and other industries.
-
