Laser marking machine-laser engraving machine

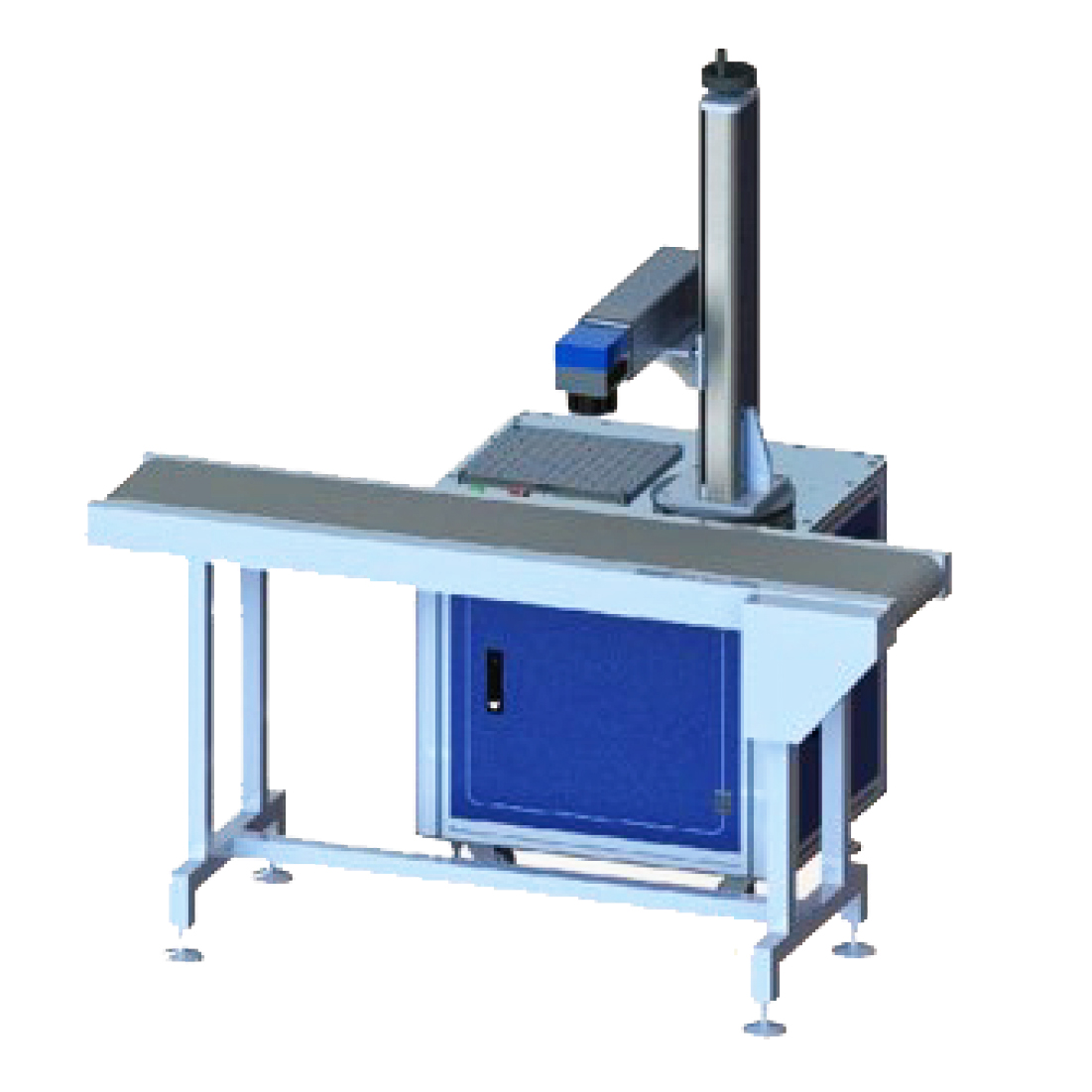

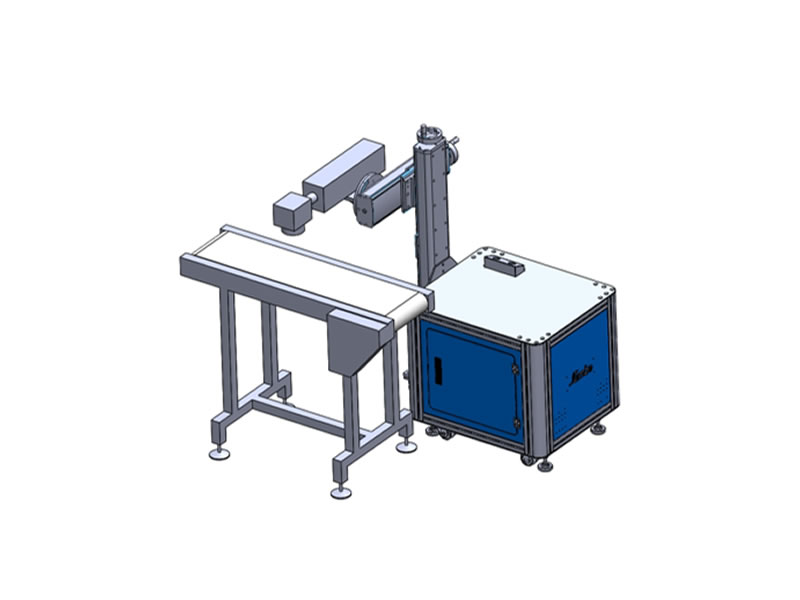

Conveyor Laser Marking Machine

Laser marking custom design case

Conveyor Laser Marking Machine

Conveyor Laser Marking Machine

Download
Applied material / field
  • ●  Set up a modular production line.
    ●  The accuracy requirements for the position of the mark are not very high.
    ●  A production line that cannot be stopped for composite parts.

Features
  • ●  It can be directly installed on the production line, and the movement of objects can be tracked

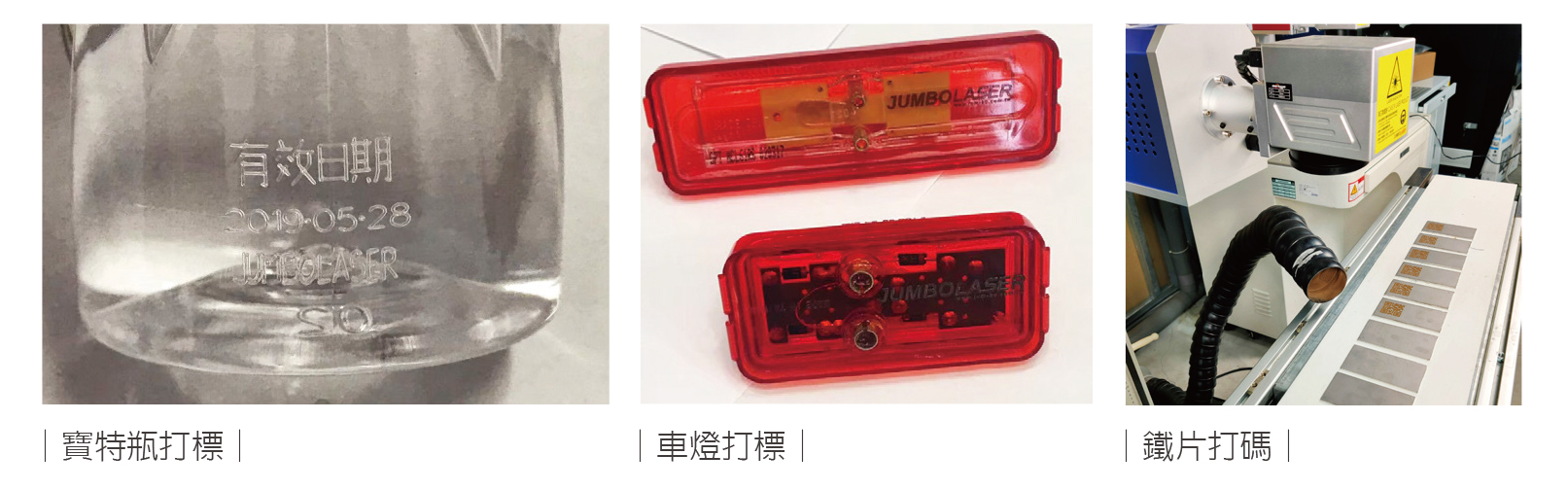

    ●  Applicable to the LOGO, date, and production history on the product.
    ●  It can be matched with solutions such as visual alignment, code scanning...etc.

  • Product number

    • JBL-LMF series
  • Application Introduction

    • Can be matched with different light sources for product categories, such as CO2, optical fiber, UV, etc.
    • The flying marking machine can be used with existing production lines for assembly line coding. The coding speed is fast and no consumables are needed. It will not fall for a long time after marking, which improves work efficiency.
  • Equipment Specifications

    • Laser source wattage :20/30/50
      Marking range :110*110mm 175*175mm 300*300mm
      Engraving speed :5000mm/s
      Minimum line width :0.05mm
      power supply :110V/220V 60HZ
      cooling method :Air-cooled
      Power consumption :<0.8KW
      Equipment size :800*650*1500mm
  • Application industry

    • Automobile and motorcycle parts, IC electronic components, bicycle industry, life hardware, food resume and other industries.
