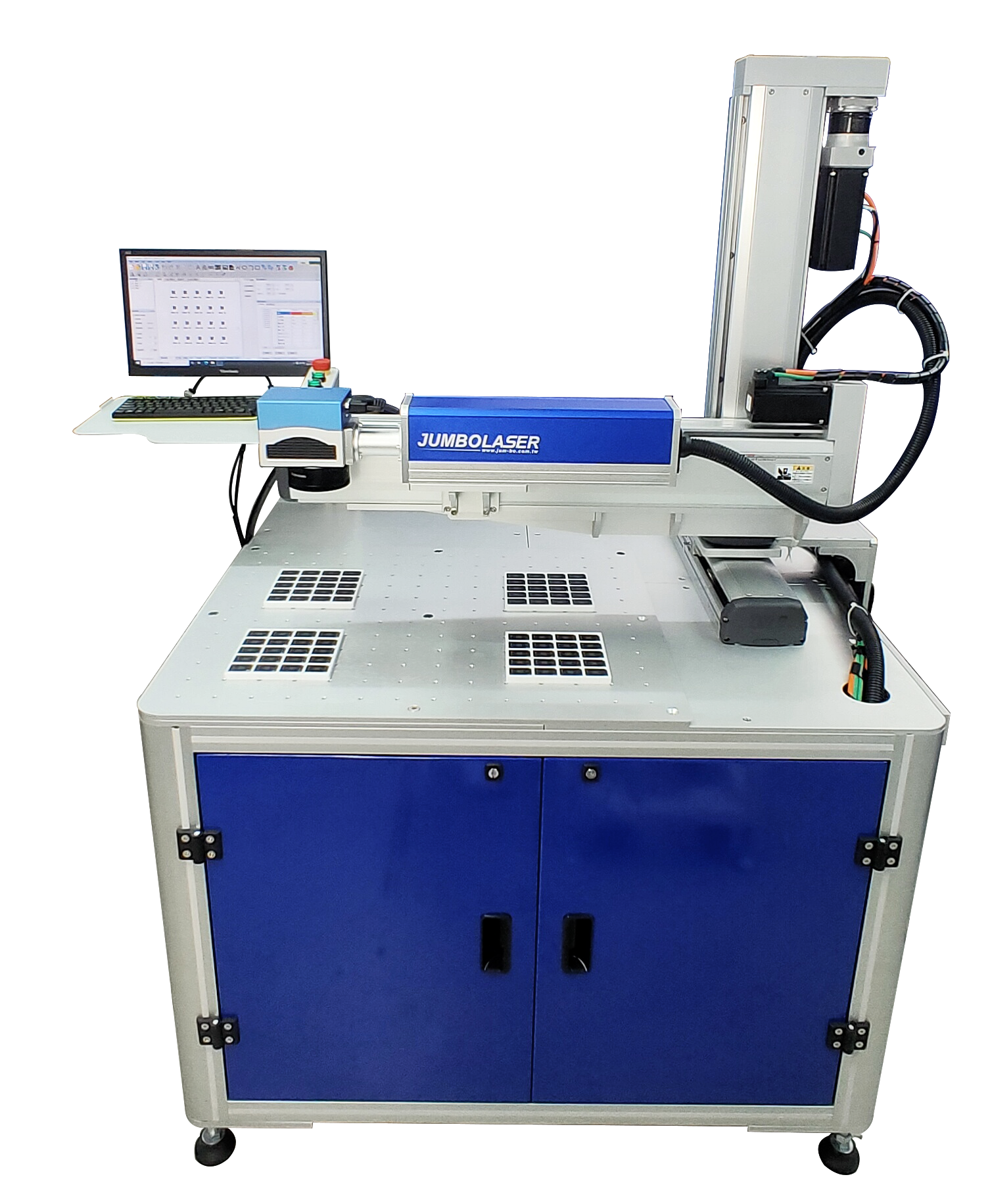

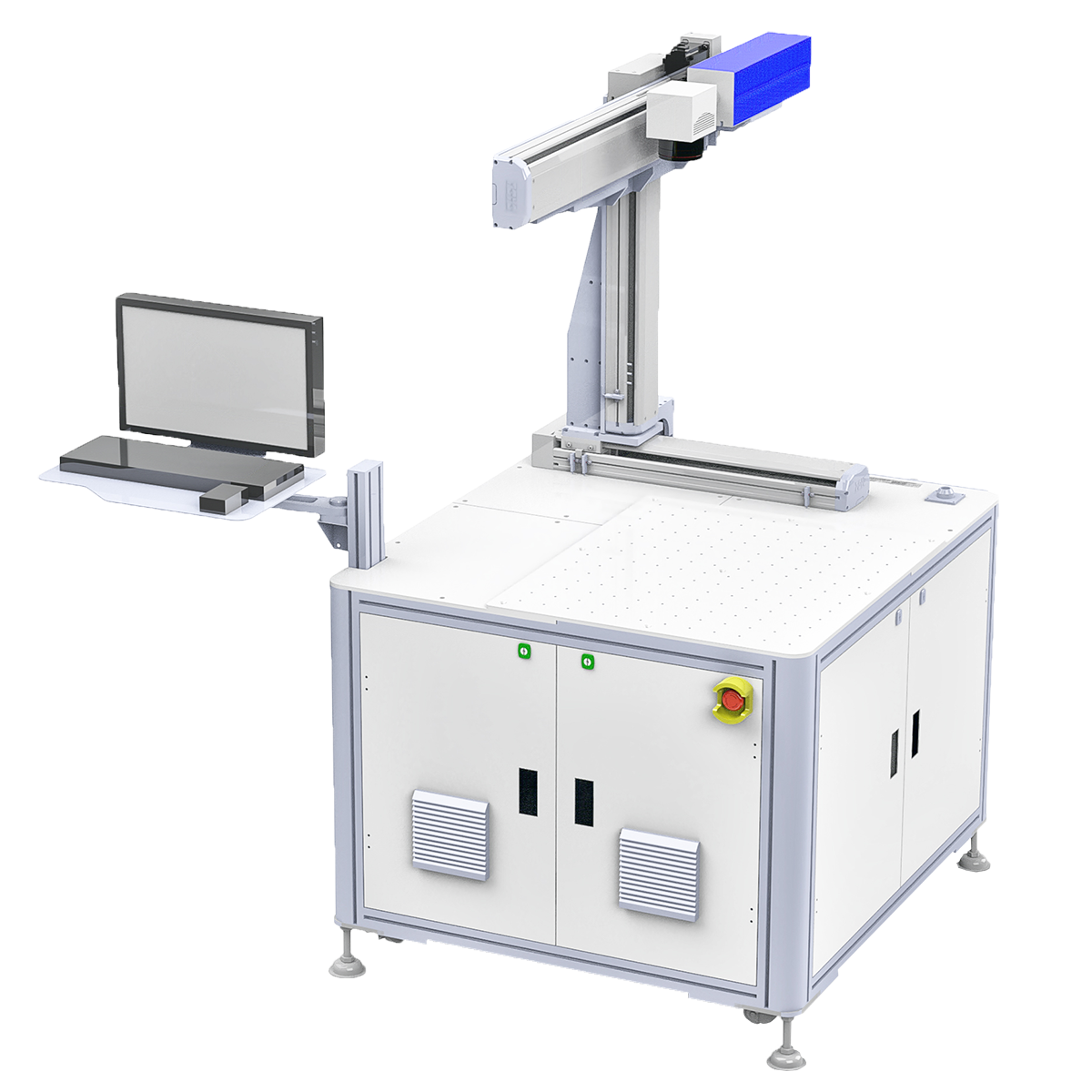

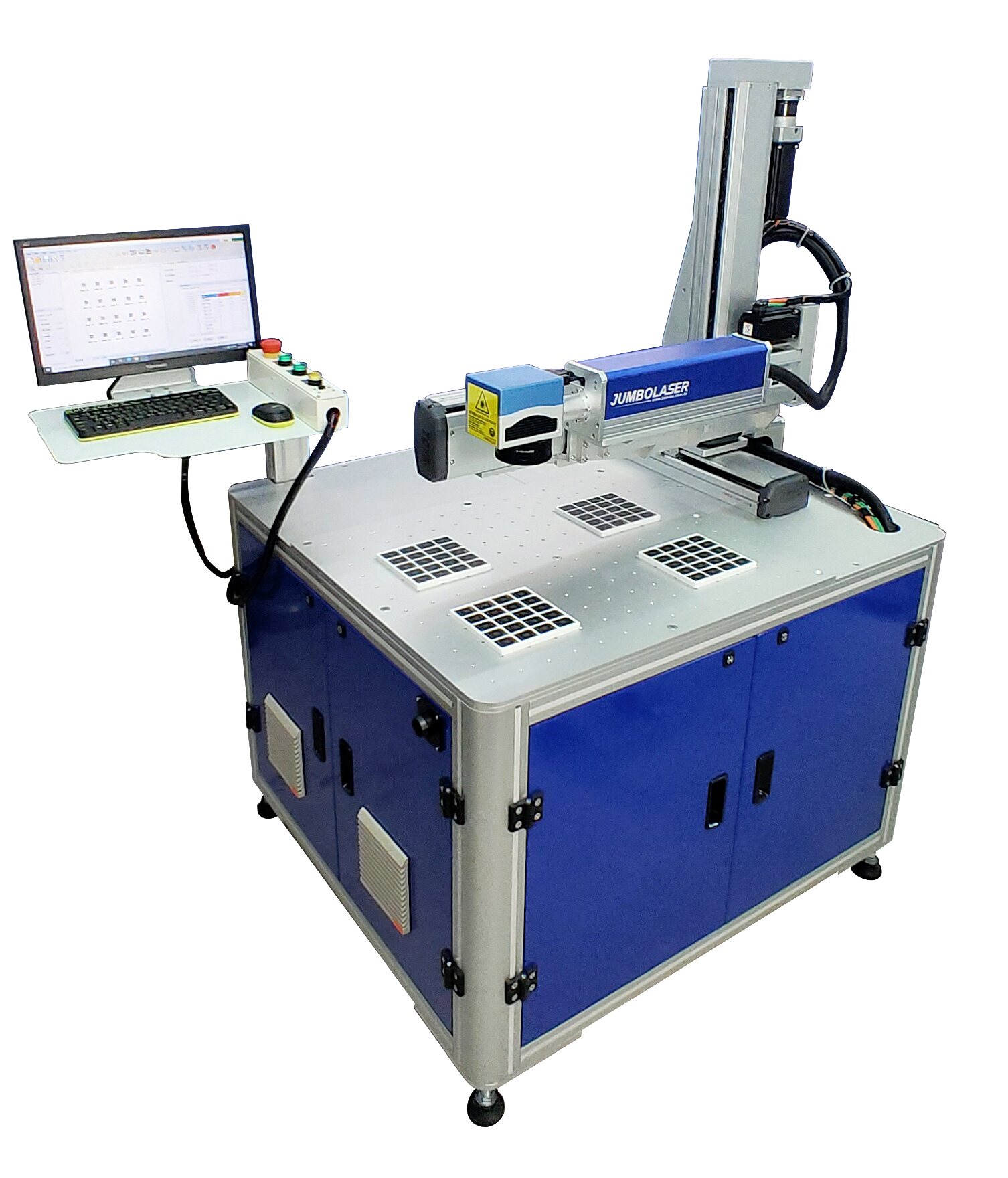

Three-axis fiber laser marking machine

Laser marking custom design case

Three-axis fiber laser marking machine

Three-axis fiber laser marking machine

Features

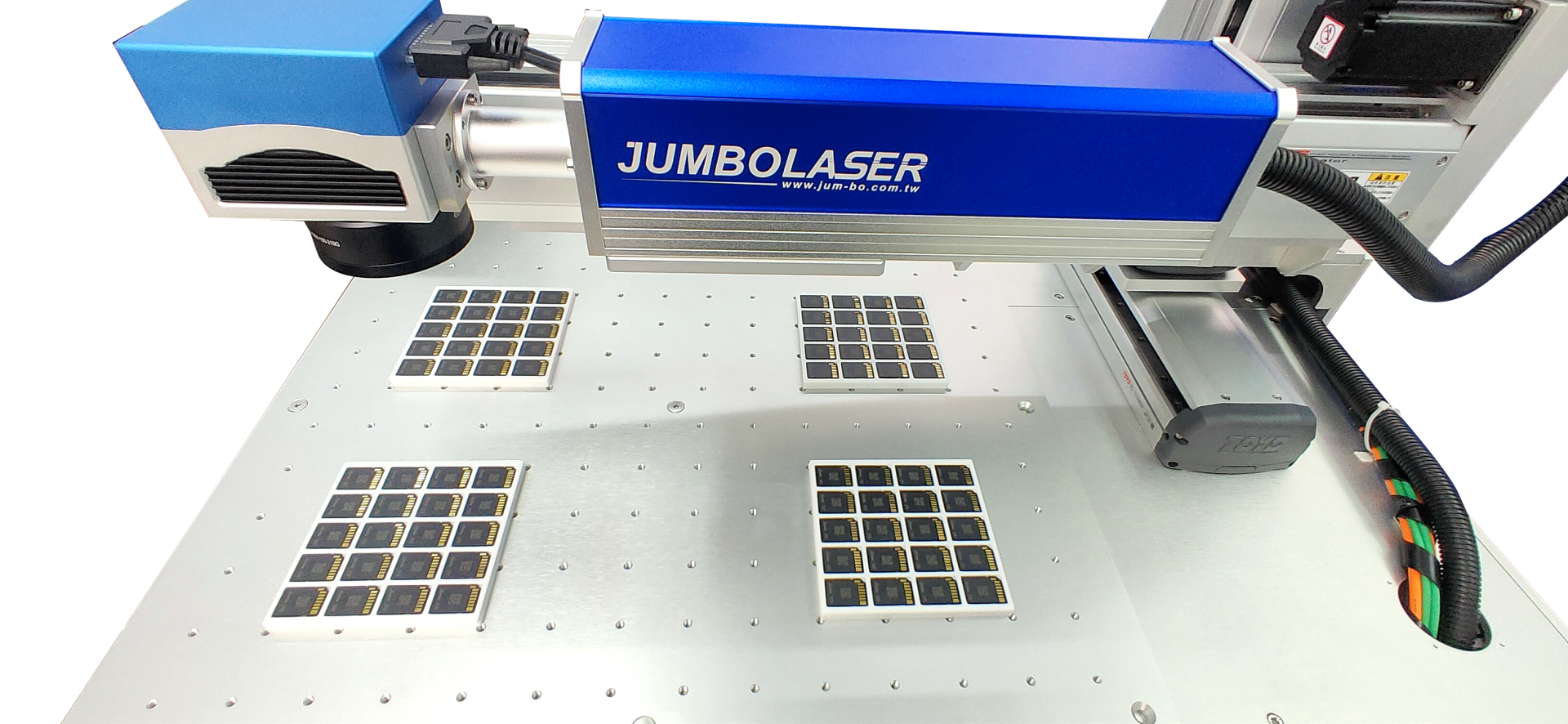

  • ●Equipped with a servo motor to accurately mark the tray of electronic parts

    ●Can be matched with CCD visual alignment to compensate product deviation

    ●It can be used with production cloud kanban to let the production department know more about equipment utilization rate and production cycle

    ●The marking content can be imported through the Excel sheet, and the two-dimensional bar code can be generated, making the production smarter

  •

  • Application Introduction

    • Can realize deep, marking, product number, barcode, assembly line
  • Features

    • Equipped with a servo motor to accurately mark the tray of electronic parts
  • Equipment Specifications

    • Laser source wattage :20W
      Marking range :150*150mm
      Laser wavelength:1064nm
      Minimum line width :0.03mm
      power supply :2kw/Three-phase220V/60HZ
      cooling method :Air-cooled
  • Application industry

    • Electronic parts industry, hardware processing industry, fastener industry, automobile and motorcycle parts industry, metal processing industry, etc.
