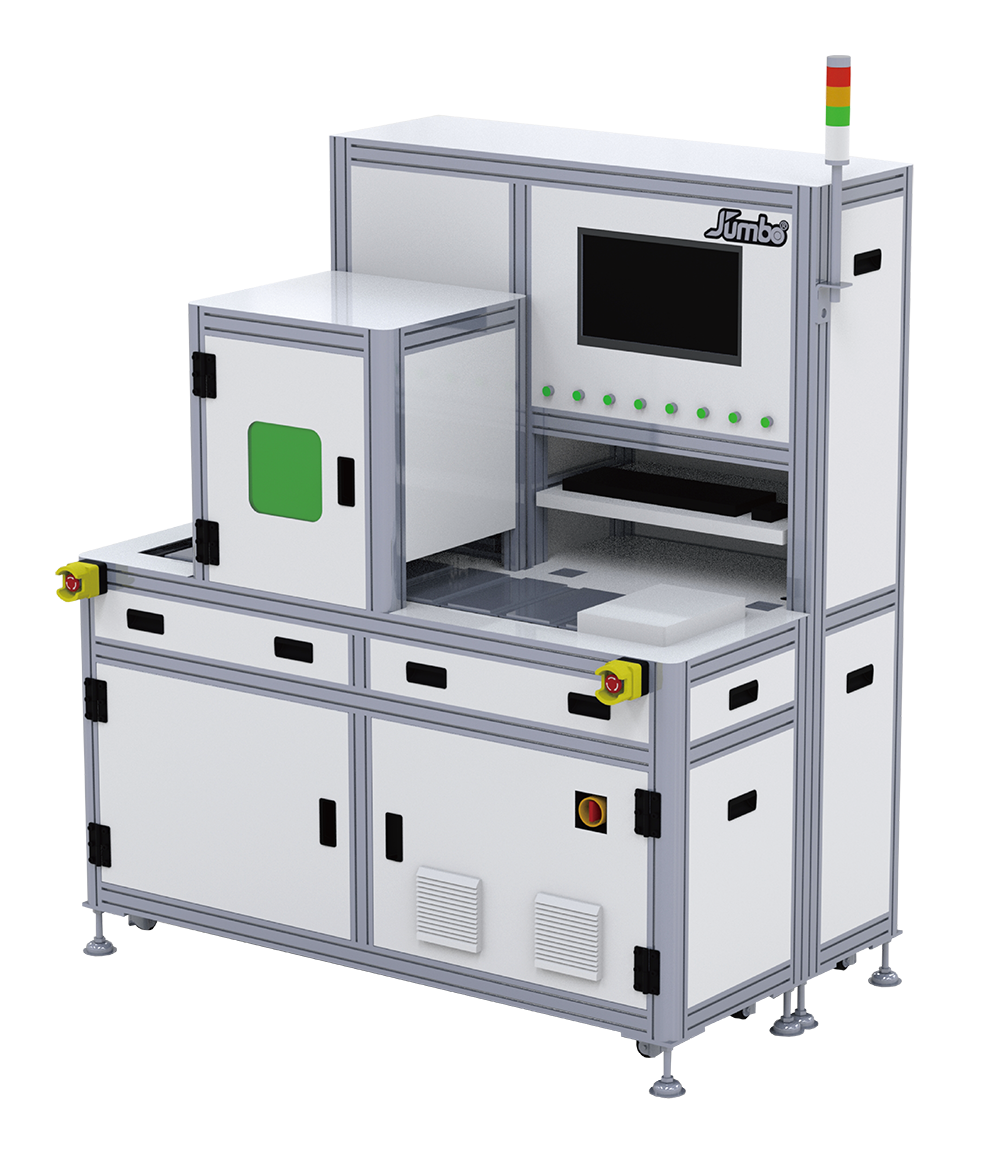

Multi-station marking machine

Laser marking custom design case

Multi-station marking machine

Multi-station marking machine

Applied material / field
  • This model is suitable for

    ● Fiber laser
    ●UV laser
    ● CO2 laser
    ★-Specifications can be customized-★

Features
  • ● High-precision laser marking
    ● Can be matched with vision to achieve random material marking
    ● Specifications can be customized




  • Specifications

    • Marking range :175mm  x  175mm
      Maximum line speed :5000mm/s
      Minimum line width :0.05mm
      power supply :0.8km/AC220V /60HZ
      Best working environment :0-35°C  <90%  humidity
      cooling method :Air-cooled
  • Equipment Specifications

    • Laser source :Raycus 50w/wavelength1064nm
      Controller :New generation controller
  • Peripheral accessories

    • Light 1.6m chain conveyor belt
      x, y axis laser ranging
      Laser processing area cover
      Manual z axis + y axis
      Emergency stop equipment on the left and right sides
