Laser welding

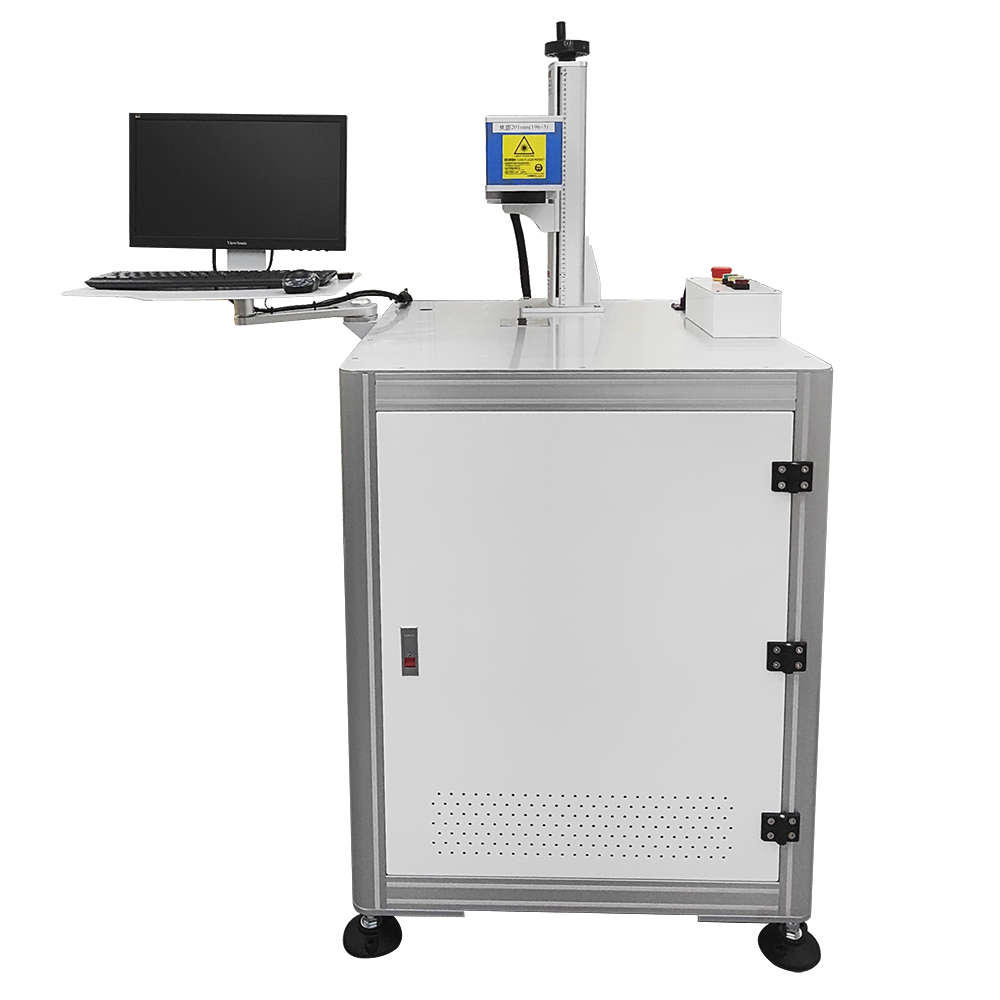

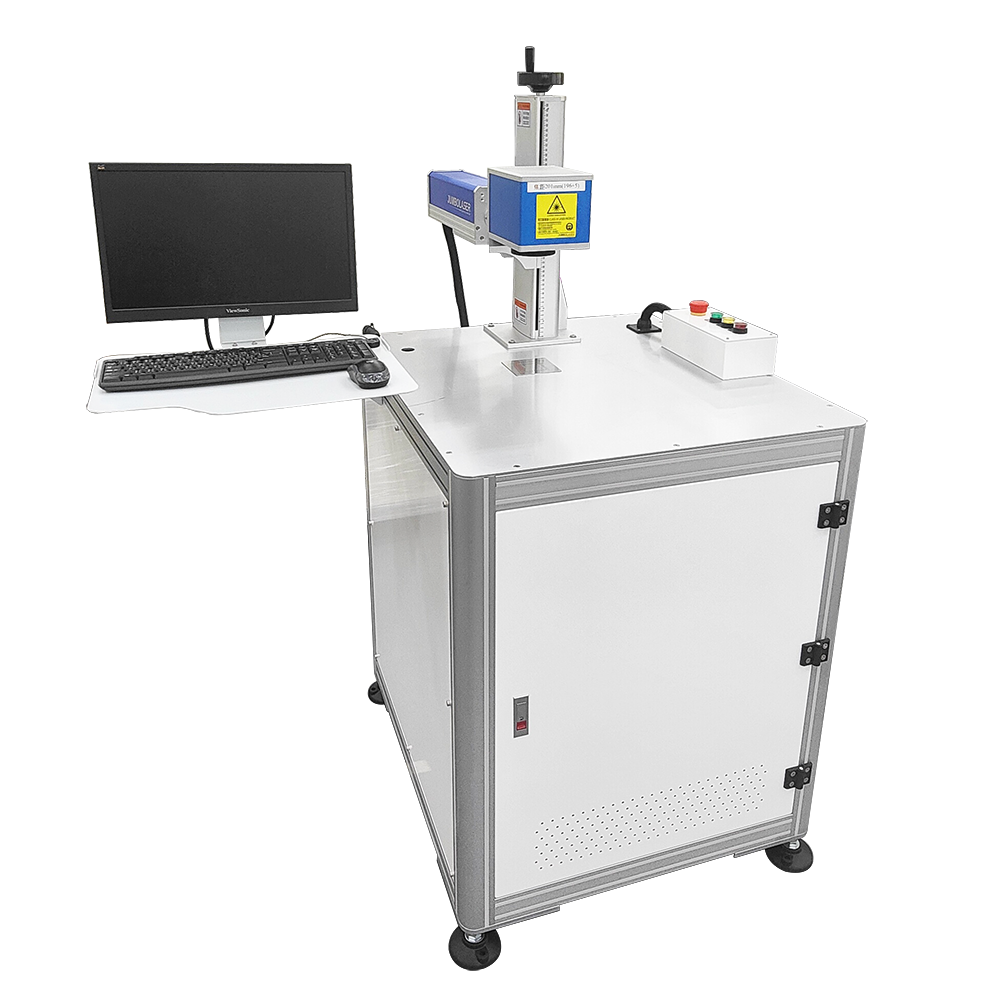

Galvo Laser Welding Machine
Applied Material / field
-
● Suitable for thin plate weldingbr /> ● The welding is fine, fast and efficient to meet the 24-hour mass production.
Features
-
● It can realize high-speed and high-precision spot welding and continuous welding of arbitrary patterns. The pulse laser has low heat input and is not afraid of deformation problems.
● Suitable for fine welding. Especially suitable for fine welding of stainless steel, carbon steel, gold, silver, aluminum, nickel alloy, copper, titanium and other materials.
-

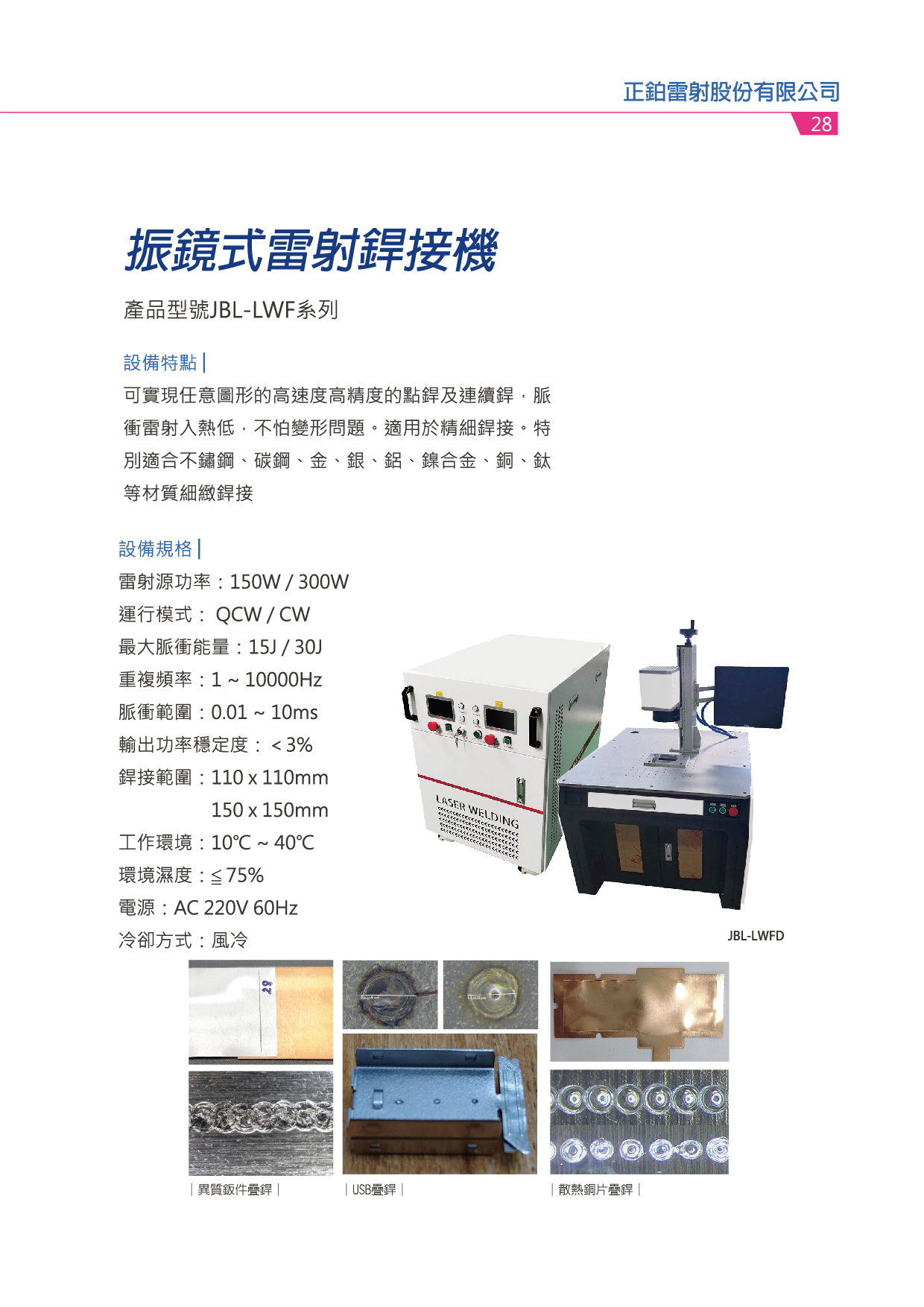

Product number
-
JBL-LWF series
-
-
-
-
Features
-
It can realize high-speed and high-precision spot welding and continuous welding of arbitrary patterns. The pulse laser has low heat input and is not afraid of deformation problems.
Suitable for fine welding. Especially suitable for fine welding of stainless steel, carbon steel, gold, silver, aluminum, nickel alloy, copper, titanium and other materials.
-
-
Equipment Specifications
-
Laser source wattage :150W / 300W
operating mode :QCW / CW
Maximum pulse energy :15J / 30J
repeat frequency :1~10000Hz
Pulse range :0.01~10ms
Output power stability :＜3%
Welding range :110 x 110 mm
150 x 150 mm
working environment :10℃~40℃
power supply :AC 220V 60HZ
cooling method :air cooling
-
-
