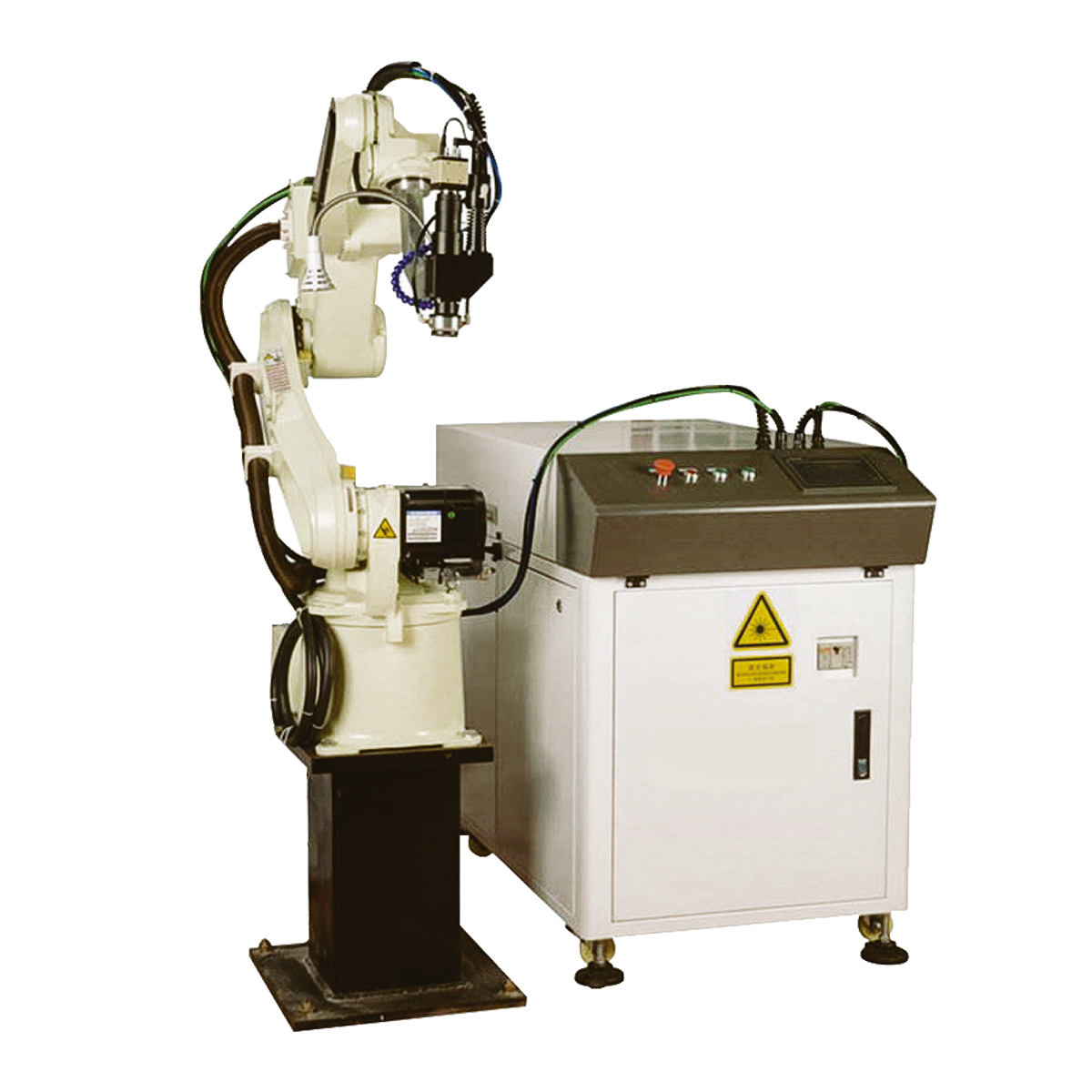

Robotic Laser Welding Machine

Laser welding

Robotic Laser Welding Machine

Robotic Laser Welding Machine

Download
Features
  • High degree of freedom and flexible space

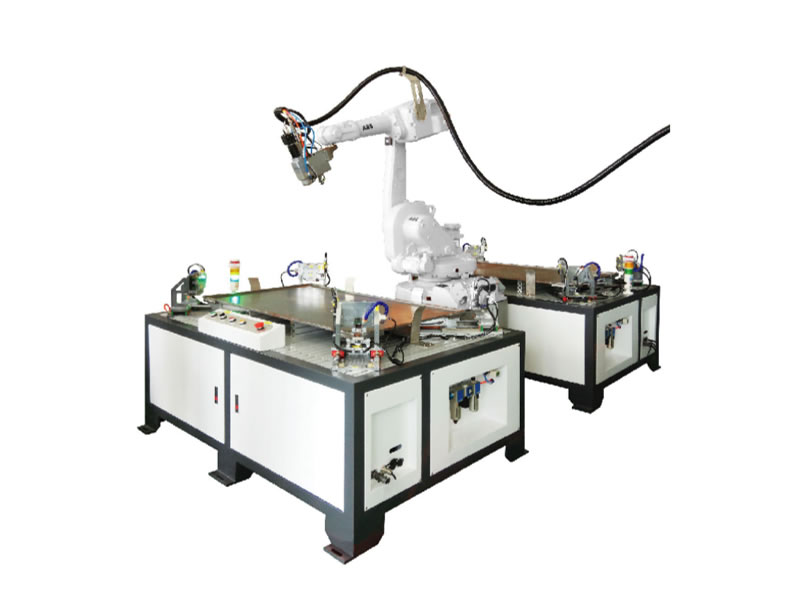

    ● The robotic arm with six degrees of freedom is flexible and reliable, and can be welded in any space, not limited to plane welding, and solves difficult space welding.
    ● According to the production needs of customers, we can plan time-sharing and multi-station equipment to work at the same time, take turns loading and unloading materials, and customize fixtures.

    Functional flexibility and easy operation
    ● The robotic arm welding system can be operated by using the hand-held controller, and high-efficiency production work can be achieved even in a place with more restrictions.
    ● A welding seam tracking system can be added to detect and correct deviations in real time to realize automated production lines.

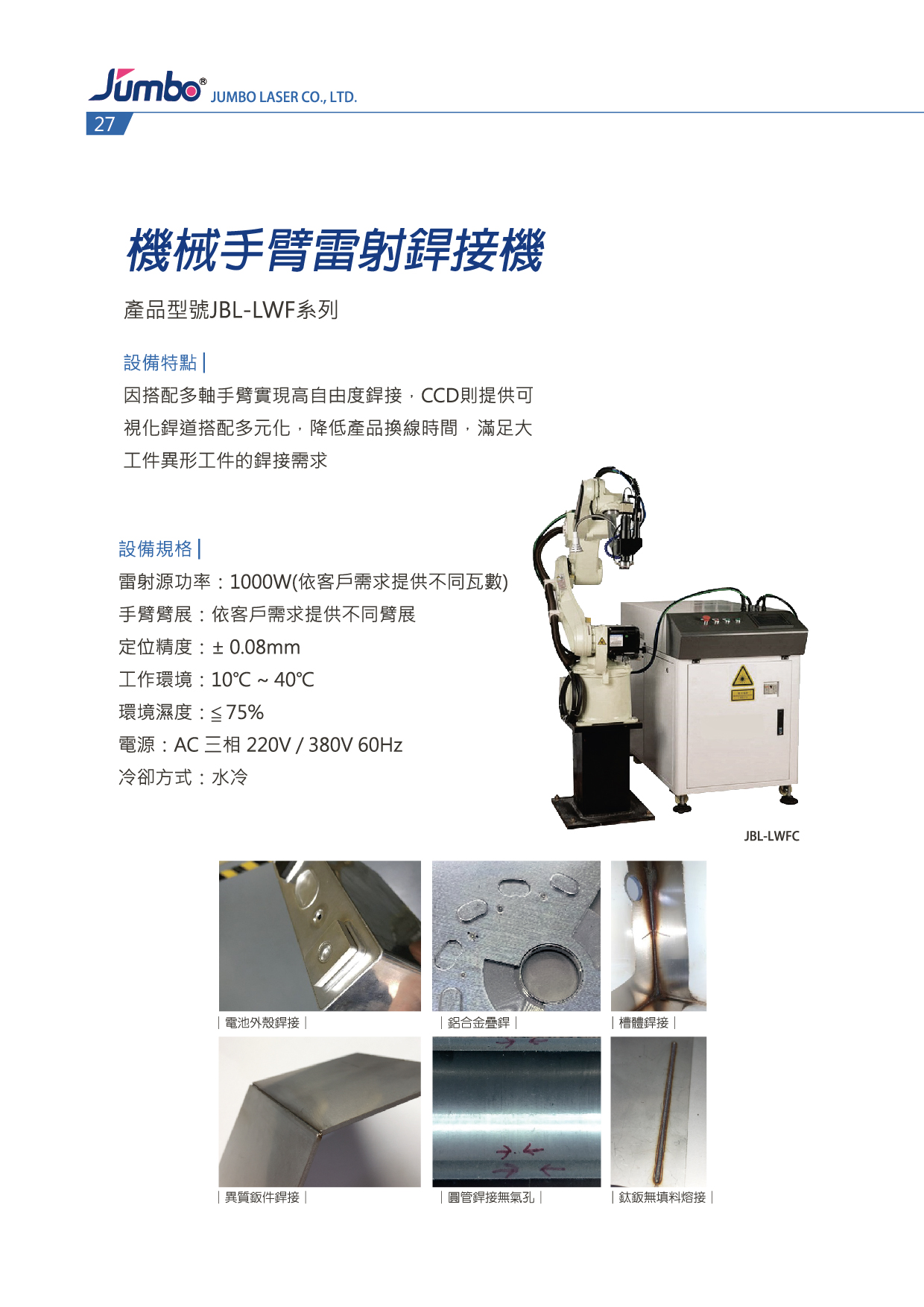

  • Product number

    • JBL-LWF series
  • Application Introduction

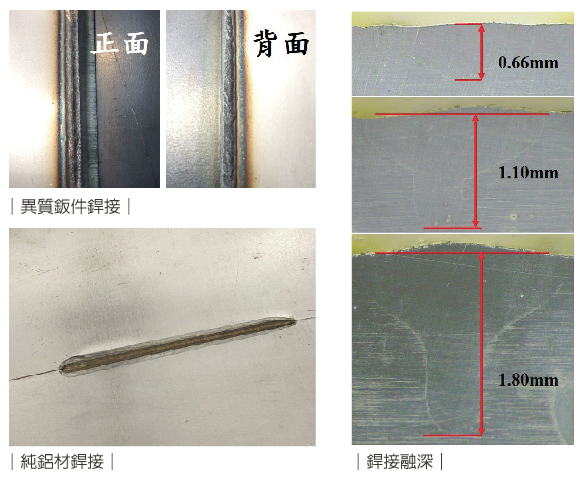

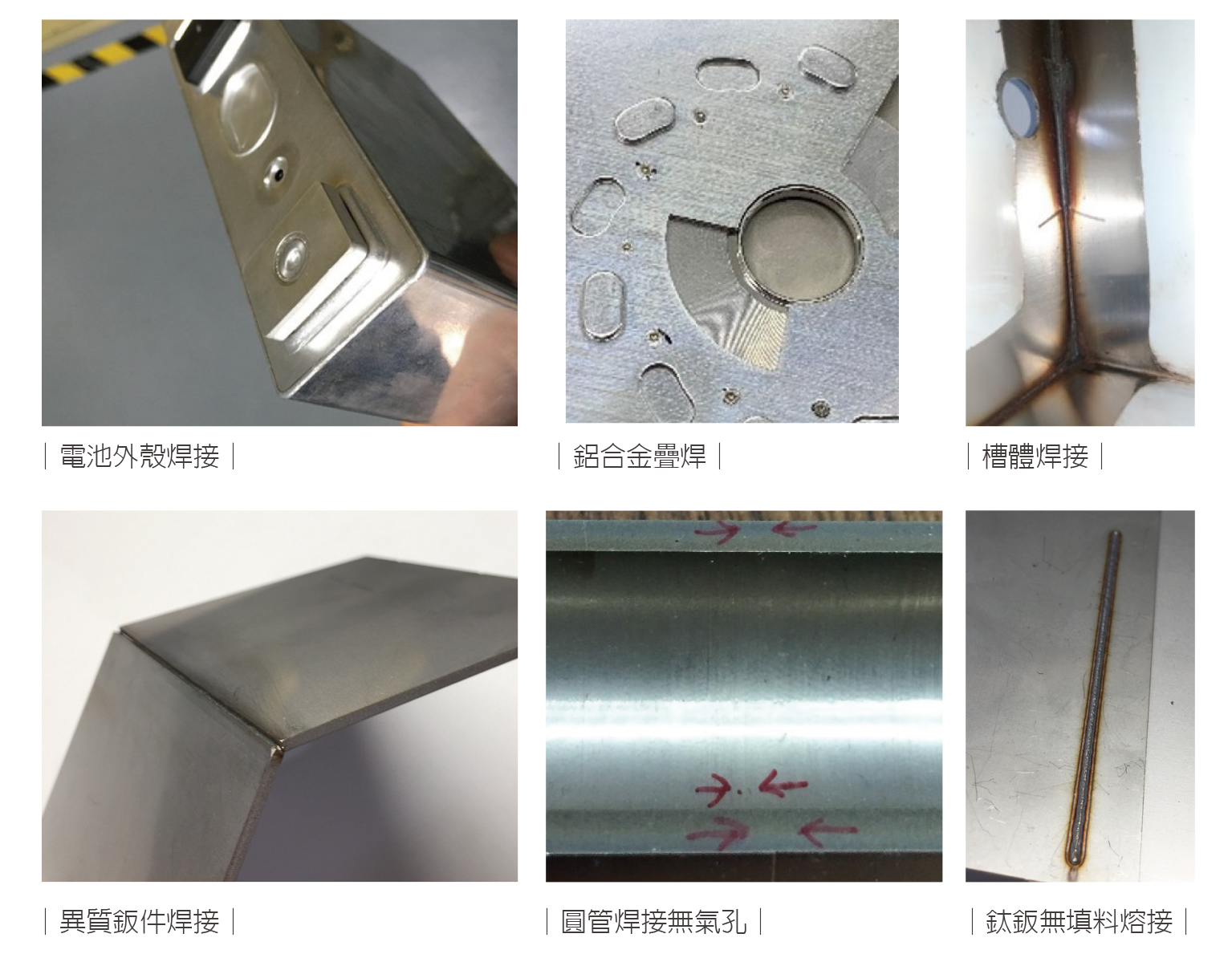

    • Tailor welding, lap welding, stitch welding, vertical welding and fillet welding for stainless steel, aluminum alloy, copper and titanium alloys
  • Features

    • Due to the multi-axis arm to achieve high-degree-of-freedom welding, CCD provides a variety of visual weld bead collocations, reducing product exchange time and meeting the welding needs of large workpieces and special-shaped workpieces.

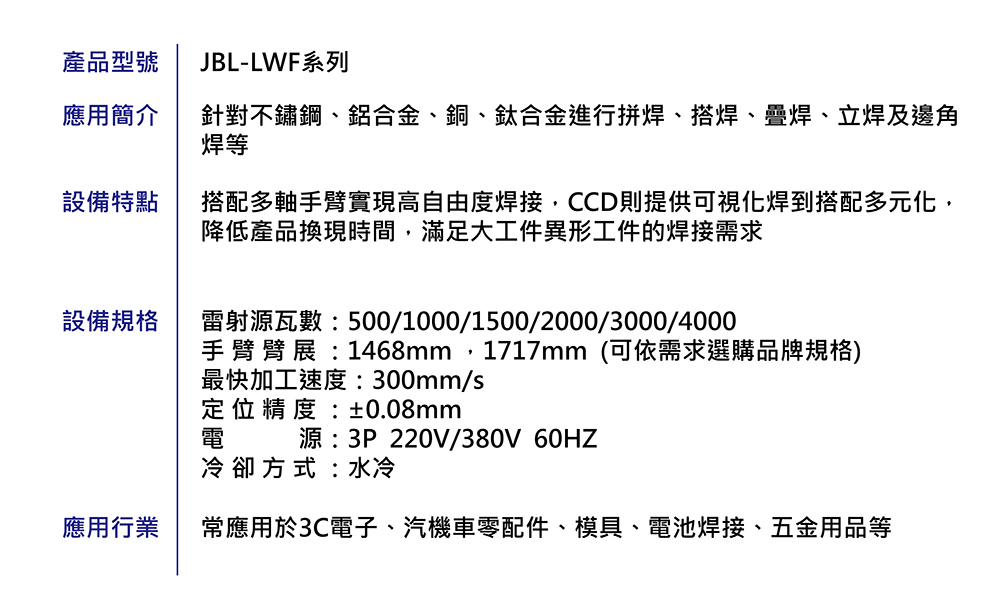

  • Equipment Specifications

    • Laser source wattage :1000W (Provide different wattage according to customer needs)
      arm span :Provide different wingspan according to customer needs
      positioning accuracy :±0.08mm
      environment humidity :≦ 75%
      power supply:three phase   220V / 380V 60HZ
      cooling method :water cooling
