Fiber Laser Welding Machine

Laser welding

Fiber Laser Welding Machine

Applied Material / field
  • Wide application and high production efficiency -
    ● Thick plates, thin plates and dissimilar materials can be welded, and welding processes such as spot welding, butt welding, stitch welding, and sealing welding can be easily completed. Adopt medium and high power laser source system, suitable for deep penetration welding.
    ● High-power laser source, fast welding speed and high efficiency to meet 24-hour mass production.

Features
  • Precise positioning and easy operation
    ● X, Y, Z, W axis servo drive, high welding positioning repeatability. With automatic focus and rotation functions.
    ● The whole machine adopts the controller of Taiwan's new generation company, which has flexible functions, stable system, and programming of acquisition path points, which is easy to operate and easy to use.

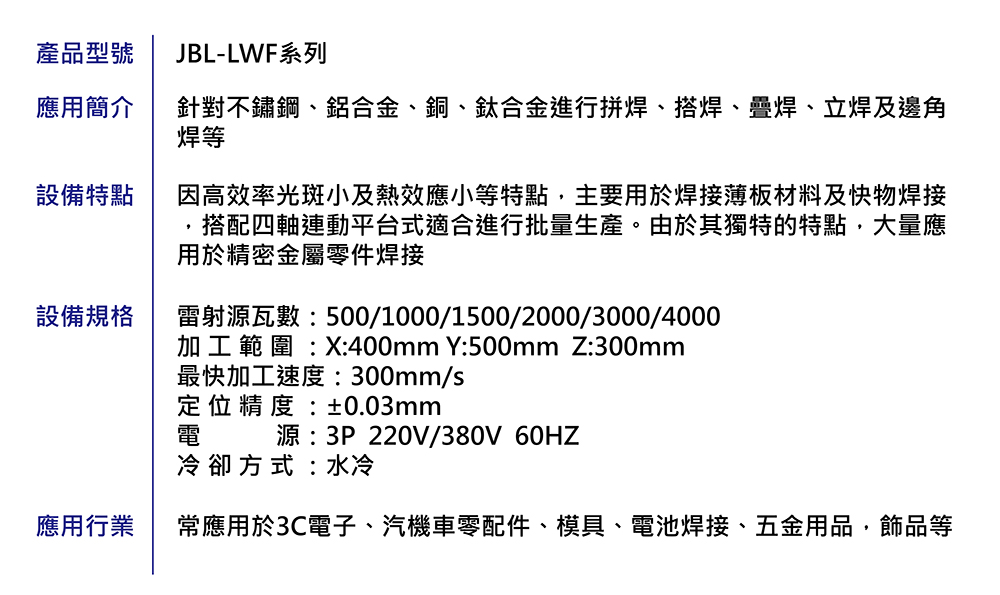

  • Product number

    • JBL-LWF series
  • Application Introduction

    • Tailor welding, lap welding, stitch welding, vertical welding and fillet welding for stainless steel, aluminum alloy, copper and titanium alloys
  • Features

    • Due to the characteristics of high efficiency, small spot and small thermal effect, it is mainly used for welding thin plate materials and rapid welding. It is suitable for mass production with a four-axis linkage platform. Due to its unique characteristics, it is widely used in precision metal parts welding
  • Equipment Specifications

    • Laser source wattage :1000W / 2000W / 3000W / 4000W
      Processing range :X-400mm Y-500mm Z-300mm
      fastest processing speed :300mm/s
      positioning accuracy :±0.03mm
      working environment :10℃~40℃
      power supply : three phase   220V / 380V 60HZ
      cooling method :water cooling
  • Application industry

    • Often used in 3C electronics, auto parts, molds, battery welding, hardware supplies, accessories, etc.
