Laser cleaning machine

Laser cleaning

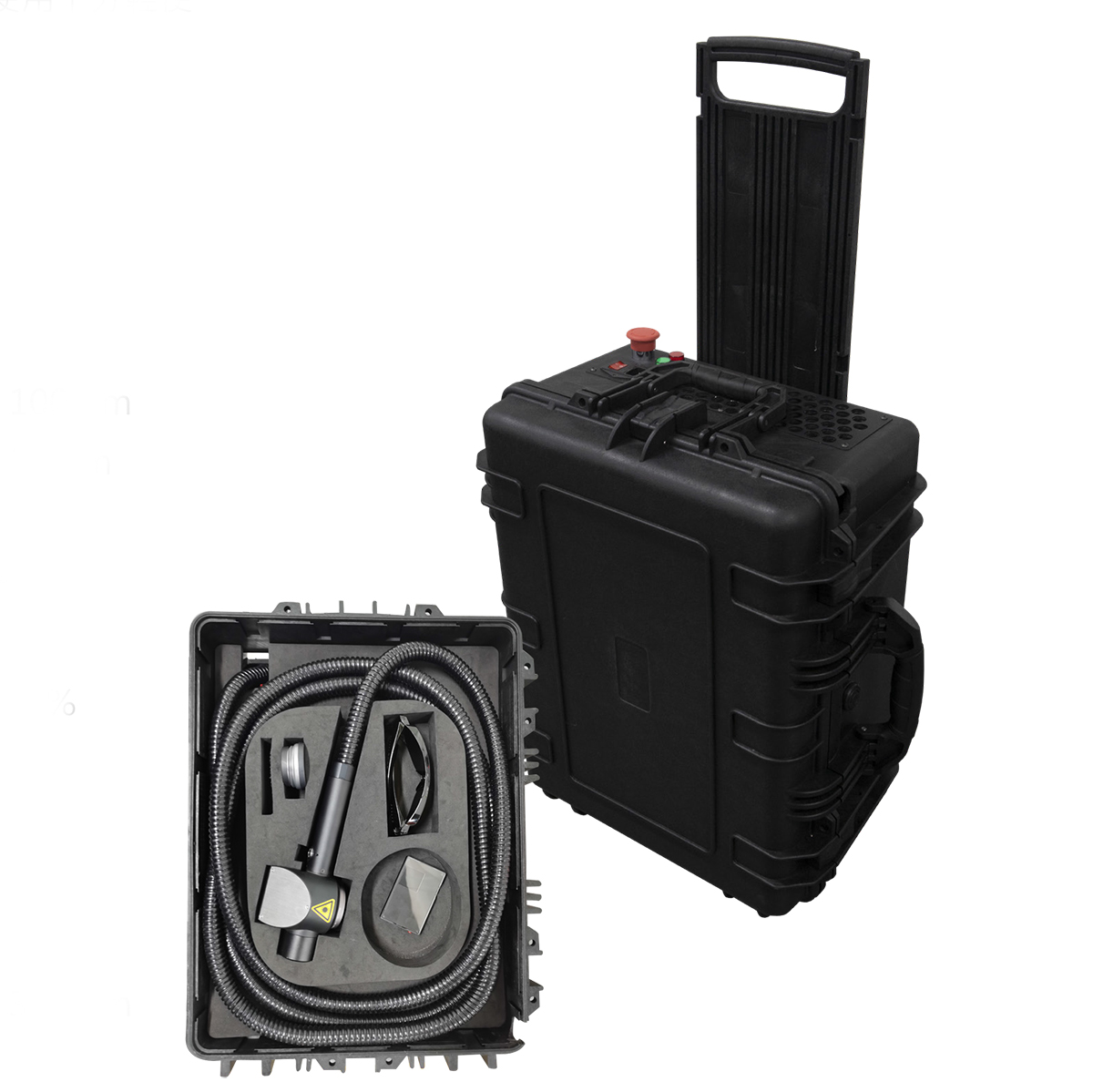

Laser cleaning machine

Laser cleaning machine

file download
Applied Material / field
  • ●Removal of metal oxides such as rust and rust
    ●Anode removal
    ●paint removal

Features
  • ● Surface rust removal, paint removal, decontamination, cleaning
    ● Environmental protection, no consumables, labor-saving and no solvent
    ● Mobile convenience, plug and play

  • Features

    • Non-contact laser light cleaning, environmentally friendly, no organic solvents

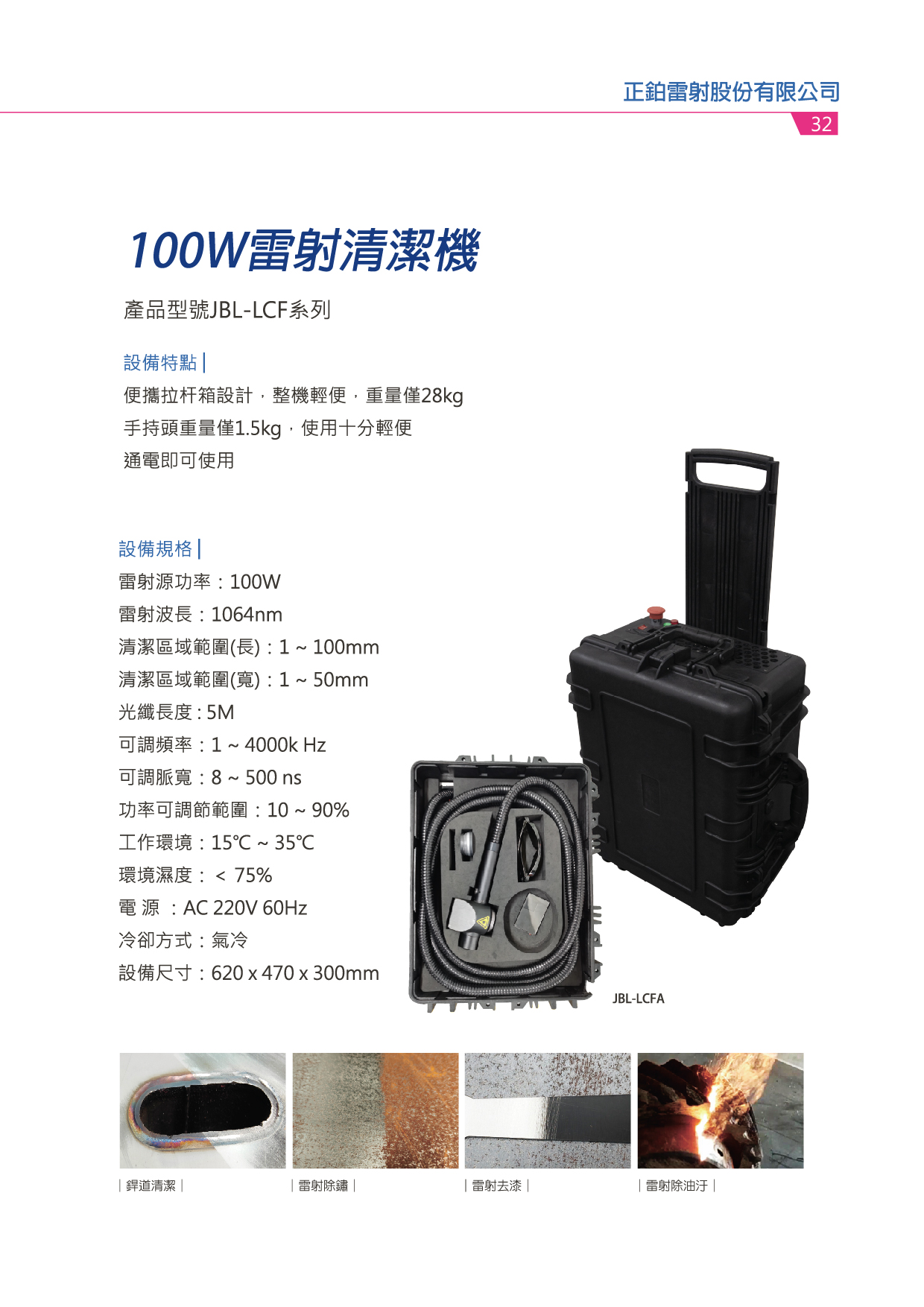

  • Equipment Specifications

    • Laser source power: 100W
      Laser wavelength:1064nm
      Cleaning area range (long): 1~100mm
      Cleaning area range (wide): 1~50nm
      Fiber length : 5M
      adjustable frequency: 1~4000k  HZ
      Adjustable pulse width :8~500ns
      Power adjustable range :10~90%
      working environment :15℃~35℃
      environment humidity :  <75%
      power supply :AC 220V  60Hz
      cooling method :air-cooled
      Equipment size :  620 x 470 x 300 mm
      equipment weight:about28kg
      hand weight:about1.5kg
  • Application industry

    • Automobile manufacturing, machining, shipbuilding, mold industry, metal manufacturing...etc.


Advantages of laser cleaning


cleaning method Laser rust removal/Laser cleaning chemical pickling blast cleaning dry ice cleaning
contact Contactless  contact contact contact
Damage-free cleaning Nearly no damage  low damage high damage medium injury
cleaning precision High-precision cleaning  low precision cleaning low precision cleaning low precision cleaning
Degree of environmental pollution no pollution high pollution high pollution no pollution
consumables required No consumables  chemical cleaning agent Aluminum ball, iron ball dry ice
