UV laser fast screen vibrating disc automatic mark

UV laser marking series

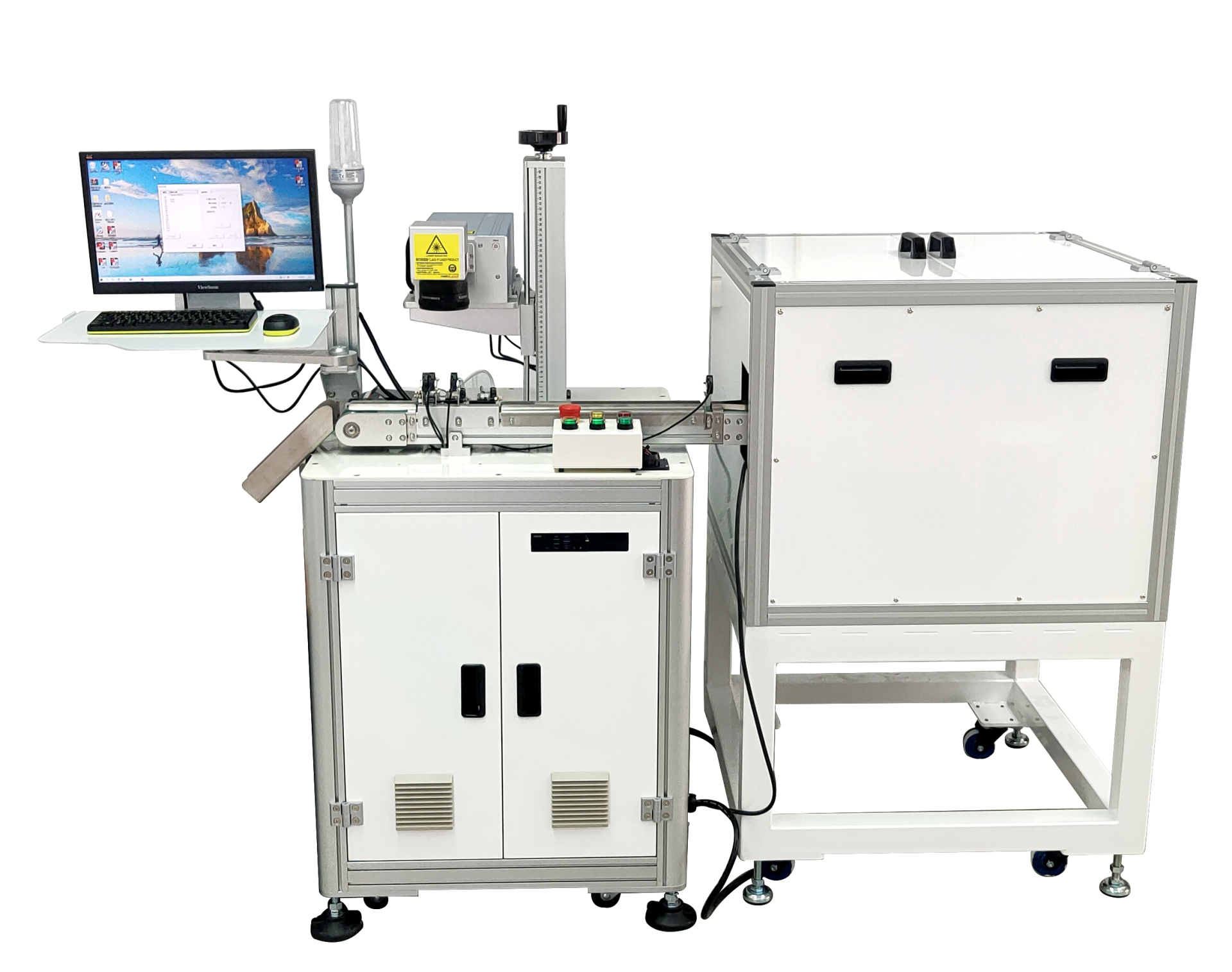

UV laser fast screen vibrating disc automatic mark

Applied Material / field
  • ●Suitable for glass, materials that are easily affected by thermal deformation and require high surface fineness


產品特點
  • Vibrating plate with conveyor belt feeding
    Accurate marking with pneumatic mechanism positioning
    Small machine size, high production line efficiency
    ● Automatically switch pictures to realize different types of items
    ● The marking is clear, not easy to wear, and the depth of engraving and marking can be controlled at will

  • Product number

    • JBL-LMU series
  • Application Introduction

    • Can realize deep, marking, product number, barcode, assembly line
  • Features

    • The marking spot is more detailed. The thermal influence is small. It has unique advantages for fine marking of various materials. The vibrating plate is matched with the automatic feeding and unloading design of the conveyor belt, which greatly reduces the labor cost and improves the production capacity.
  • Equipment Specifications

    • Laser source wattage :3W
      Laser wavelength:355mm
      Marking range :110*110mm
      Repeatability :0.05mm
      Minimum line width :0.03mm
      power supply:AC220V
      cooling method :water-cooled
      Machine Consumption :about1.5KW
      Equipment size :1900*900*1600mm
      equipment weight :220KG
  • Application industry

    • Auto parts, IC electronic components, food and drug packaging, craft gifts, PCB circuit boards, glass, ceramics; brittle and hard materials and other industries.
