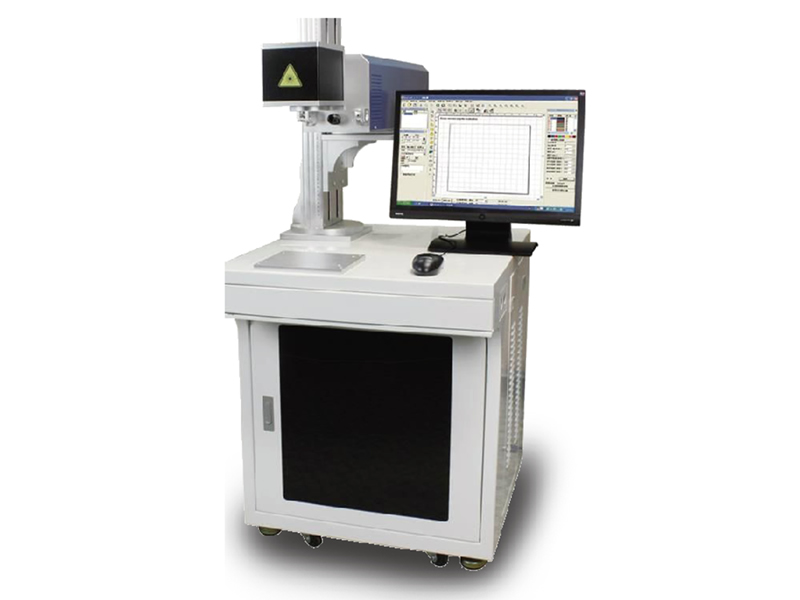

CO2 Laser Marking Machines

CO2 laser marking series

CO2 Laser Marking Machines

CO2 Laser Marking Machines

Download
Applied material / field
  • ● Wood / Paper / Plastic / Fabric / Glass / Resin Material / Acrylic / Plating Layer / Painted Surface

Features
  • ● Adopting the radio frequency metal tube imported from the United States, with high marking accuracy and stable quality

    ● Use high-speed scanning galvanometer and beam expander focusing system, reliable production

    ● The marking is clear, not easy to wear, and the depth of engraving and marking can be controlled at will

  • Product number

    • JBL-LMCseries
  • Application Introduction

    • Can realize deep, marking, product number, barcode, assembly line
  • Features

    • The marking spot is more detailed. It is widely used in marking and cutting of non-metallic materials

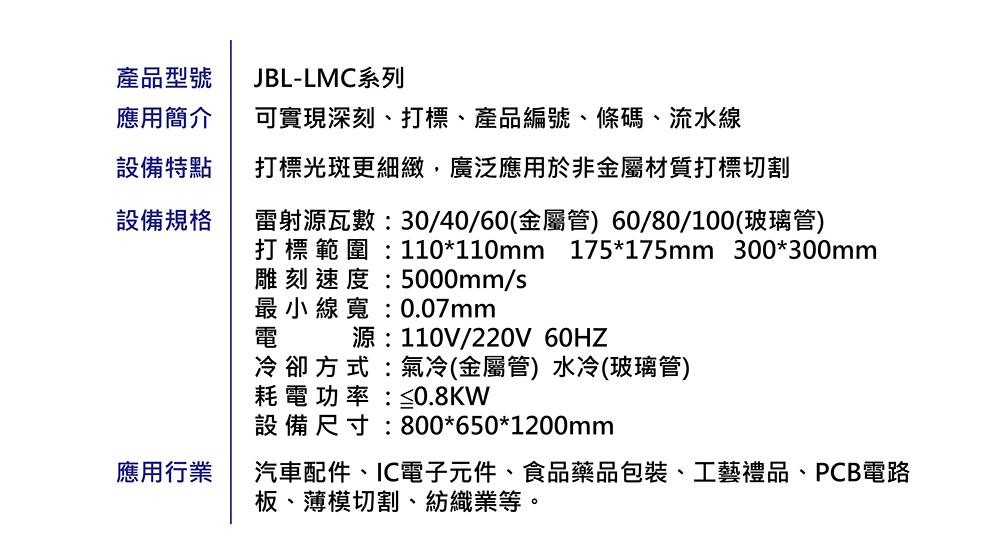

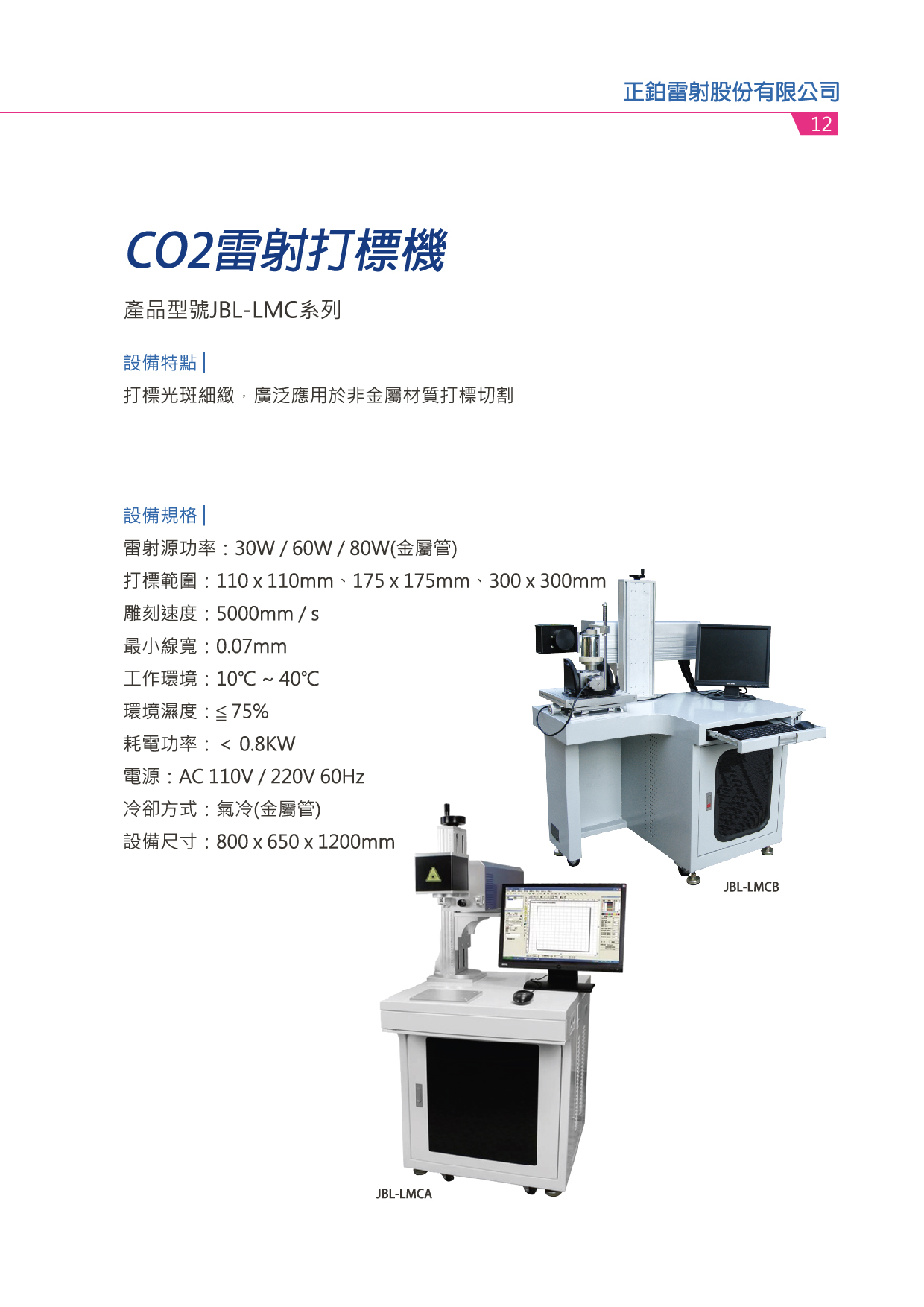

  • Equipment Specifications

    • Laser source wattage :30W/60W/80W(Metal tube)
      Marking range :110x110mm 175x175mm 300x300mm
      Engraving speed :5000mm/s
      Minimum line width :0.07mm
      working environment :10℃~40℃
      environment humidity :≦ 75%
      Power consumption :<0.8KW
      power supply:AC110V/220V 60HZ
      cooling method :air-cooled(Metal tube)
      Equipment size :800*650*1200mm
  • Application industry

    • Auto parts, IC electronic components, food and drug packaging, craft gifts, PCB circuit boards, thin die cutting, textile industry, etc.
