3D laser marking series
3D Laser Marking Machine
3D Laser Marking Machine
file download
Applied Material / field
-

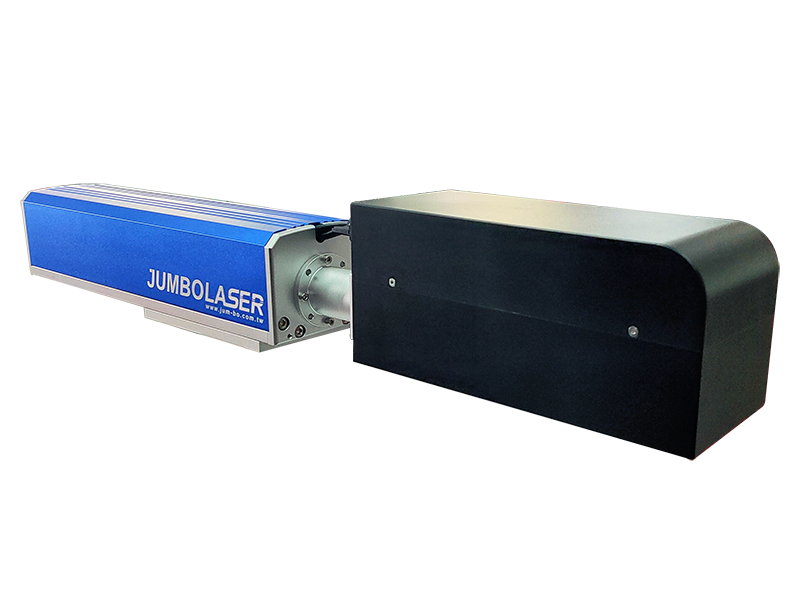

● XYZ three-axis dynamic focus, no defocus phenomenon, can track the focus of deep engraving in real time

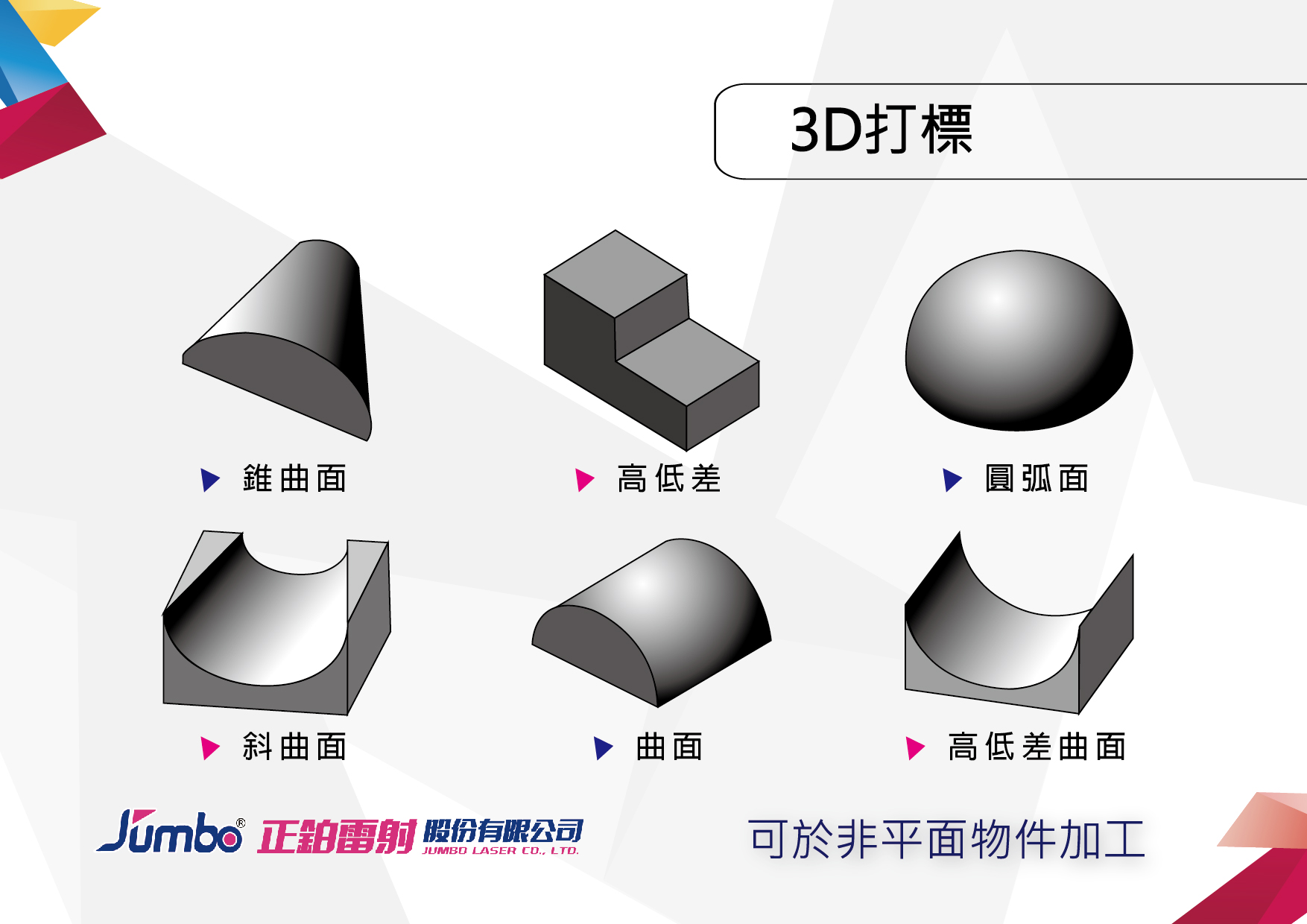

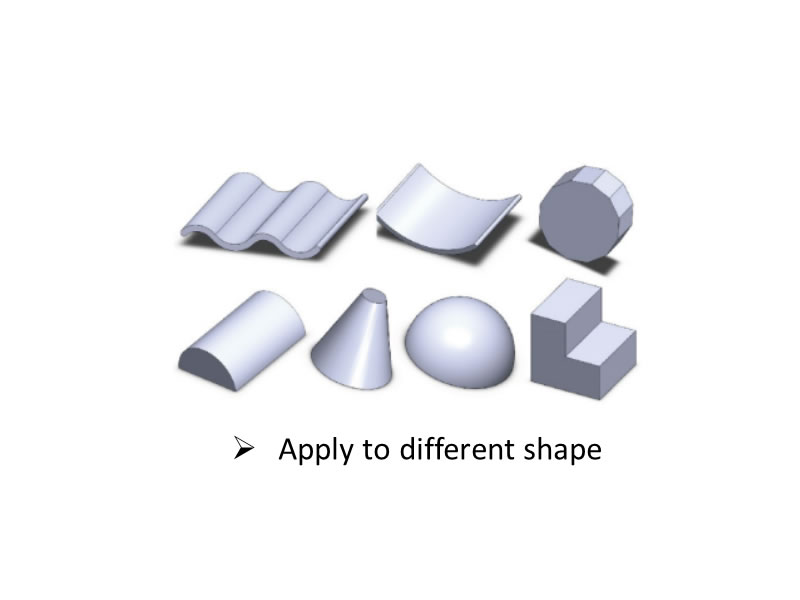

● Realize various 3D engraving and marking of inclined plane, level difference, cylinder, cone, spherical surface and extruded surface
● The marking effect is uniform, the pattern is not deformed, and the marking pattern is perfectly presented
● The software is easy to use, easy to learn and understand
-

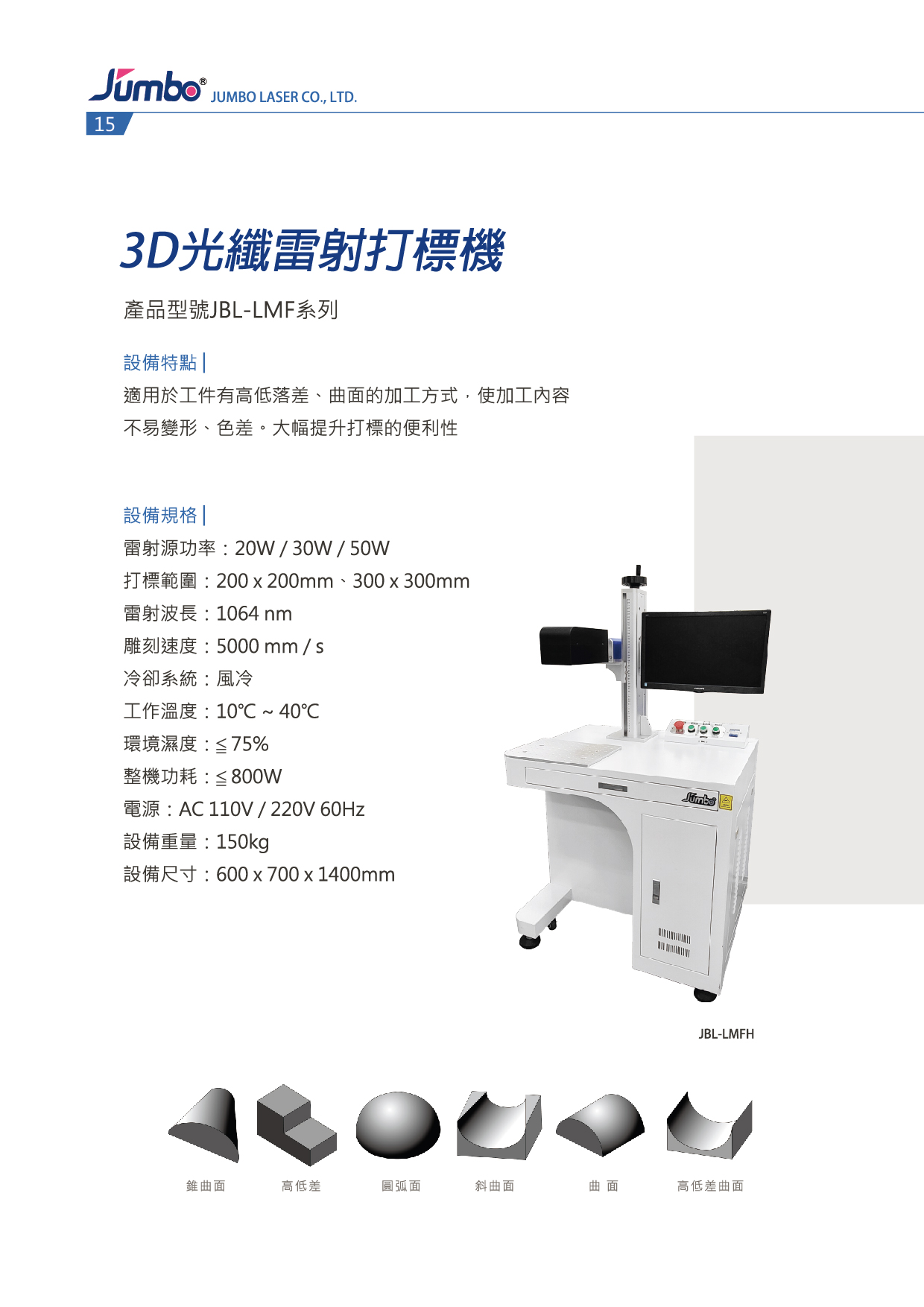

Product number
-
JBL-LMF series
-
-
Application Introduction
-
Can realize deep, marking, product number, barcode, assembly line
-
-
Features
-
It is suitable for the processing method of workpiece with height difference and curved surface, so that the content is not easily deformed and chromatic aberration. Greatly improve the convenience of marking
-
-

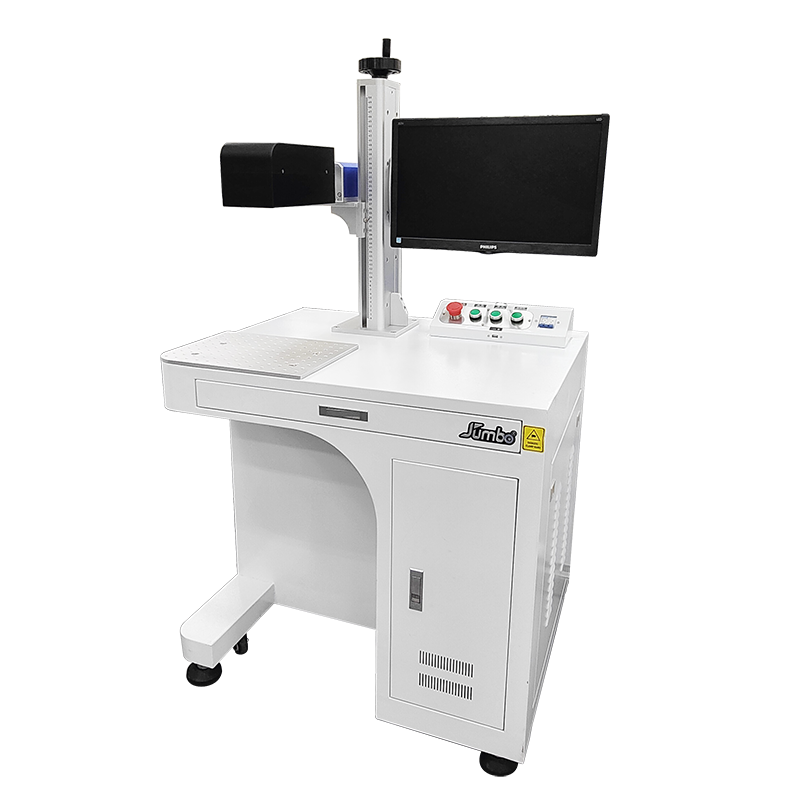

Equipment Specifications
-
Laser source wattage :20W/30W/50W
Marking range :200 x 200mm 、300 x 300mm
Engraving speed :5000mm/s
Operating temperature :10℃~40℃
environment humidity :≦ 75%
Machine power consumption :≦ 800W
cooling method :air cooling
power supply :AC 110V / 220V 60Hz
equipment weight:150KG
Equipment size :6000*700*1400mm
-
-
